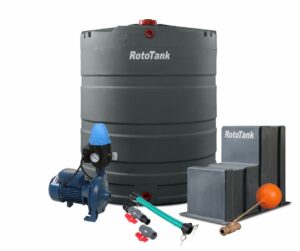

Product Type: Vertical 5000 L Water Tank Combo

Included In Combo:

• 1 x Vertical 5000l Water Tank
• 1 x 1.1kw Water Pump with Controller
• 1 x Pump Cover
• 1 x Suction Hose Kit
• 1 x Float Valve Kit

Tank Size: 5000 L

Product code: V5000W

Product Use: Water storage

Colour: Green/Tan/Grey

Material: LLDPE-Linear Low-Density Polyethylene

Eco friendly: UV – Resistant

Fittings: Supplied with 40mm Red RotoTank™ connectors

Specific Gravity: 1.0 SG

Delivery: Free Nationwide -Delivery is free of charge to the nearest entry point on the property.

It is the client’s responsibility to arrange the placement of the tank to the desired position.

Warranty: 10 – Year

Warranty exceptions: Incorrect installation of the tank

Diameter: 1800mm

Height: 2150mm

Weight: 80kg

Inlet: 40mm Top Red RotoTank™ fitting

Outlet: 40mm Base Red RotoTank™ fitting

Lid Size: 180mm

Specifications on Pump

Model:                        1.1 KW Booster pump with controller

Power:                        1.1KW (1.5HP)

HMax:                        44m

Qmax:                        120l/min

G/W:                           17.1KG

Voltage:                     220/50hz

Suction Head:        8m

Runs Per Minute: 2850

Outlet:                       25mm

Inlet:                          32mm

Specifications on Suction Hose Kit (included in Kit)

Reducing Nipple:              40-25mm x 1

Compact Ball valve:         25mm x 2

Quick coupler male:        25mm x 2

Quick coupler Female:    25mm x 2

Suction Hose:                    25mm x 300mm length (green)

Specifications on Pump Cover Large

Height: 700mm

Width:  370mm

Length:  700mm

Float Valve Kit (included in Kit)

Orang Float:                         150mm orange float

Float Valve:                           Brass Torrenti 20mm Flat valve (heavy pressure)

Running Nipple:                   20mm

Reducing Bush:                    40/20mm

Socket:                                  20mm

Plumbers Tape:                    1 x 12mm x 12m Heavy duty

Features

Manufactured with the best food grade LLDPE Virgin Plastic
UV Resistant and BPA -Free
Food Grade Inner Black liner
Sturdy ribs for added strength & durability
Suitable for domestic and commercial use
Agricultural approved for use with livestock
Black Inner liner – prevents algae growth
Agreement Approved
Registered with Armsa, Master Builders & Plastic Convertors Association
Heavy weights of the industry
Child Safety Lids Standard
Strong sealed tank connectors as standard

Safety

All tanks should be installed as per our recommendations
Check your area for installation – that you have sufficient height and diameter
Vertical tank stands are available at an extra cost
Tanks should be secured in place once full
Suitable for above ground level only
Vertical water tanks are designed for stationary purpose only
Trained technicians for back up service and Advice available

Excludes Installation

Colour Variants

Actual colours may vary. We do our best to ensure that our photos are as true to colour as possible. However, due to photographic lighting sources, inconsistencies of various monitors settings, we cannot guarantee that the colour you see accurately portrays the true colour of the product.
